5th Gen Legacy Radar Detector Mirror Mount Stealth Wiring Instructions!

 blklgt05
blklgt05's Avatar
Title: Burning Monkey
Rank: Donating Member
Location: SoCal
Car: '10 RRP LGT Stg 2.1 '05 OBP LGT Stg 2.1
Posts: 2,721
iTrader: (7)
Send a private message to blklgt05 Find all posts by blklgt05 Reply With Quote
Parts
a) BlendMount Radar Detector Mount (awesome product, solid detector mount, no vibrations)
b) Direct wire SmartCord (comes with vampire tap and zip ties)
c) Bussmann BP/HHH ATM Add-A Fuse Fuse tap
d) 2x 10A Mini Fuse (low profile mini fuse will not fit into the fuse tap)

1. Follow instructions that comes with the mount and install it, pretty simple. [Figure 1]

[Figure 1]

2. Remove side and under panels below the steering wheel .
3. Ground the SmartCord ground wire to the bolt (10mm). [Figure 2]

[Figure 2]

4. Connect the vampire tap to the fuse tap wire and connect SmartCordís wire to the vampire tap. [Figure 3]

[Figure 3]

5. Connect the 10A mini fuse to the fuse tap. [Figure 4]

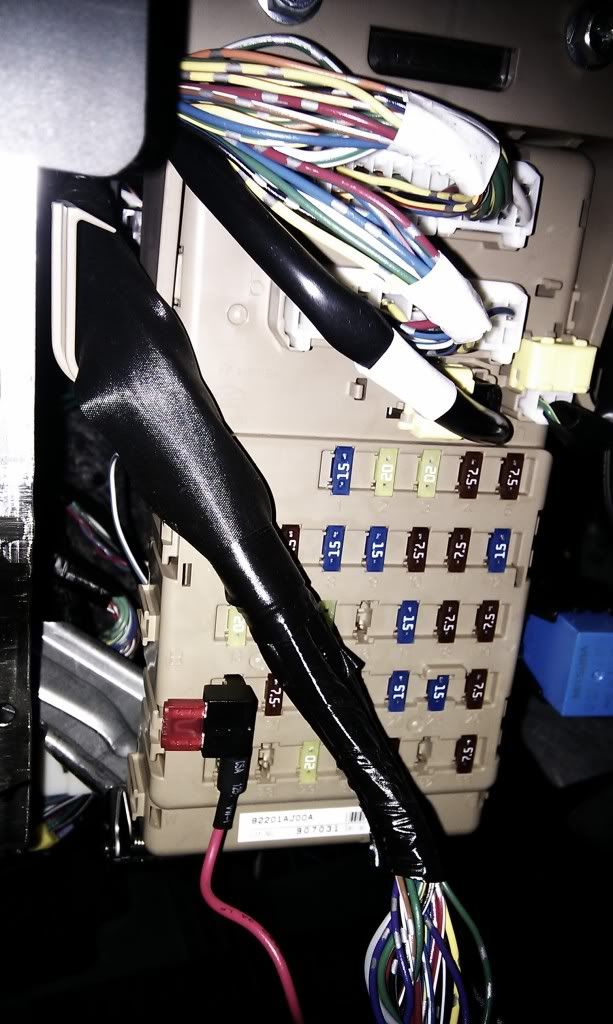

6. Follow the driver side fuse coverís map to locate [CIGAR] 10A fuse, remove it and connect the fuse tap. [Figure 4]

[Figure 4]

7. Connect radar detector, turn ignition to ON to test it. [Figure 5]

[Figure 5]

8. Zip tie SmartCord RD wires to mirrorís wires. [Figure 6]
9. Remove the plastic mirror wire cover and hide the RD wire behind it. [Figure 6]

[Figure 6]

10. Tuck wire into the roof coverings all the way to the A pillar. [Figure 7]

[Figure 7]

11. Follow [Figure 8], tuck the wire into the A pillar cover and down to the under panels.

[Figure 8]

12. After following all the wires into the under panel, refer to [Figure 9] for the location of placing the SmartCordís mute/warning controller. Zip tie the rest of the wires in the under panel, put everything back together and youíre done!

[Figure 9]
